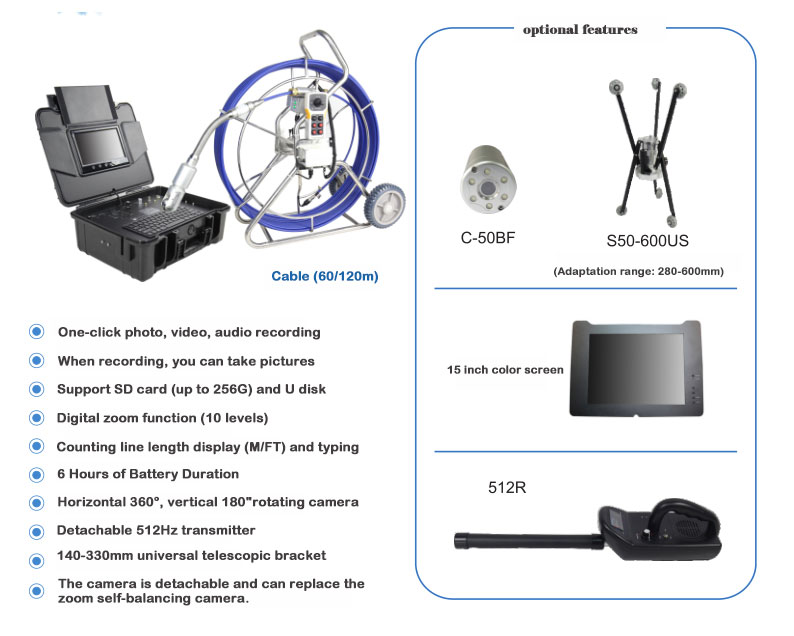

The G15 pipeline endoscope adopts a 15-inch large-screen display screen; the length is 60 meters and 120 meters optional.
The main parameters of the G15 pipeline endoscope are as follows:
| Camera | |
| Camera size: | φ50mmX170mm |
| Sensor size: | 1/3CCD |
| The angle of view: | 90° |
| Working Current/Voltage | 500MA/DC12V |
| Camera lights: | Four bright LED lights |
| Rotation angle: | Horizontal 360°, Vertical 180° |
| Resolution: | 960TV Line |
| Lens material: | Sapphire glass |
| Shell material | Aluminum alloy + stainless steel |
| Coil | |
| Coil size: | φ768LX369WX820Hmm |
| Cable material: | fiberglass thread |
| Cable length: | 60m(Standard) |
| Cable Diameter: | p9.5mm |
| Counting function and braking function | |
| Detachable 512Hz transmitter | |
| Screen | |
| Size: | 9-inch digital full-color |
| Total pixels | 800*480 |
| Working Current/Voltage | 250MA / DC12V |
| OSD language: | Chinese |
| image flip | |
| Display mode: | 116:9&4:3 |
| Sun visor | |
| Control handle | |
| 50PT rotary control: | Horizontal-Left/Right, Vertical-Up/Down, Auto, Speed |
| 50BF focusing | Focus+/Focus- |
| Light adjustment: | Brighten and dim |
| Adapt model | A4/B4 |
| Carrying case | |
| Size | L460*W370*H180mm |
| Material | ABS waterproof shell |
| Control Panel | |
| Operating Voltage | 12V |
| Working current | 200MA |
| Storage medium | 8G SD card (maximum support 256G) U disk |
| 10-level digital amplification | |
| Photo shooting and video recording | |
| DVR total pixels | 720*576（D1） |
| Video format: | MP4 |
| Microphone recording | |
| Stereo headphone output | |
| Lithium batteries | |
| Total power: | 30W |
| Charging time | 5 hours |
| Protection voltage | 9.3v |
| Working hours | ≥360 minutes |
| Protective bracket | |
| Bracket 1/2/3: | φ110/φ150/φ220mm |
